Monitor Line

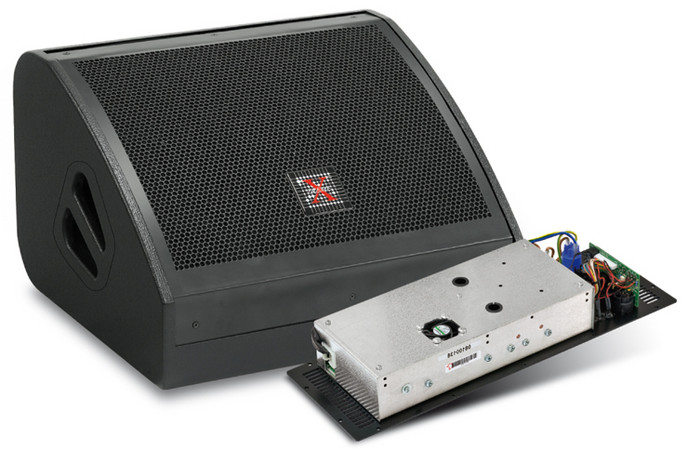

XTMON12/A

System configurationactive coaxial stage monitor
BI-Amplified (RMS)800 + 800 W @8 Ohm
class D digital
Frequency response (-3 dB)55÷18k Hz
Peak SPL (@1 m)132 dB
Coverage Angle (-6 dB)80° horizontal, 80° vertical
Power supplyswitching technology
AC Voltage115/230 V ~ 45/65 Hz ± 10%
Input
max +10 dBu - XLR
DSP on board24 bit/96 kHz (2 sel. presets)
PC Network (XT-NET)RJ45 plug - UTP Cat. 5 cable
Cabinetbirch plywood
Dimensions (WxHxD)
520x333x475 mm
Net weight (Kg)
21
